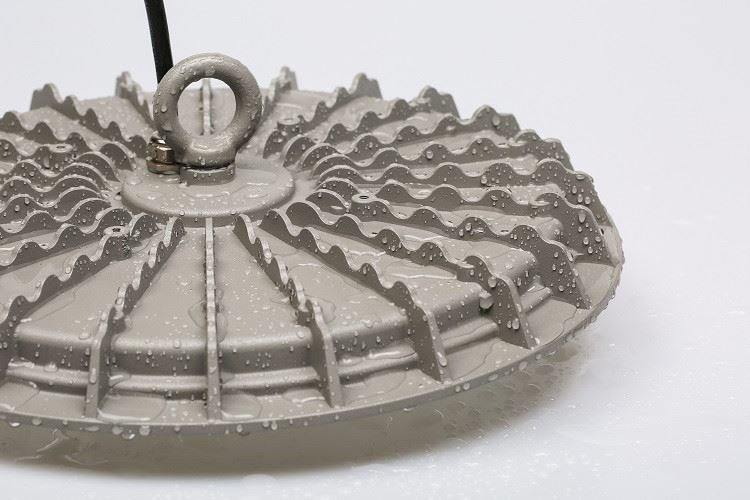

200w driver on board LED high bay light with high power, 200w with 16000 lumens in high light efficiency. Carefully selected high-quality materials to ensure the life of the lamp body, we use die-cast aluminum material for the body has the advantage of corrosion resistance, wear resistance, etc. The material makes little lumens depreciation, Integrated die-casting aluminum housing, powder painting against harsh environments, and will not change the color. The light uses 2835 SMD lamp beads offer a long service life, large exposure angle, high lumen, in line with industrial and mining lighting standards. Bracket or hook mounting optional, the bracket can adjust 180 degree, green environmental protection, no UV light and infrared radiation, no mercury pollution. CE, CB certification provides. This high bay light fit for workshop, warehouse, mall, gym, etc.

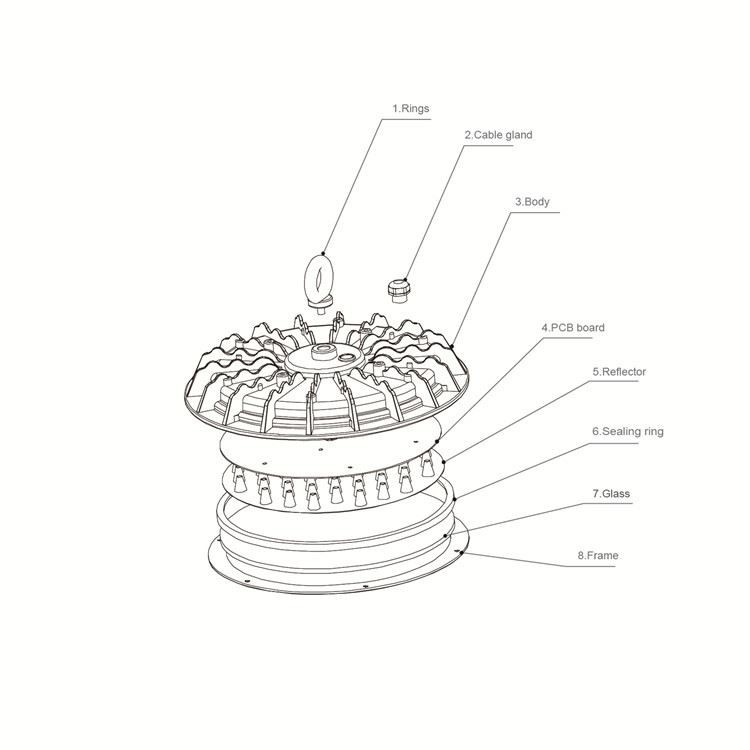

Product Features
>1. Removable rings save packing space
>2. Stainless steel cable gland
>3. Strong aluminum die-casting body with good heating
>4. PCB board: High quality aluminum PCB board pass 1500V test
>5. Reflector: High quality nano PC reflector
>6. Silicon Sealing ring
>7. Strong tempered glass
>8. Front ring detachable by screw better for after-sale service
Model NO. | ZH-HB01-200W / XR-HB01-200W | Beam Angle: | 110° |
Power: | 200W | Size: | 315*33/78MM |
Voltage: | AC220-240V 50/60HZ | Material: | Aluminum die-casting |
Power Factor: | >0.9 | IP: | IP65 |
Luminous: | >100LM/W | pcs/ctn | 5 |
CRI: | 70 | ctn size (cm) | L31.5 X W33.5 X H33.5 |
CCT: | 2700K-6500K | cbm/ctn | |
Color for body: | Black, Grey | G.W | 9.8 kgs |
Cable: | 0.2m H05RN-F3G1.0mm2 cable | N.W | 8.5 kgs |
Application
> Gymnasium
> Parking lot
> Supermarket
> Warehouse
> Garage
> Workshop
> Playgrounds
> Stadiums
> Station
> Airport
FAQ
Q. Do you offer the guarantee for the products?
Yes, we offer 2-5 years warranty according different quality standard.
Q. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and shipping are also optional.
Q. Do you have any MOQ limit for the led light order?
Low MOQ, 1pcs for sample checking is available. Mass production according your different packing request.
Q. Can I customize my products?
We can customize some of our products according to your requirement. We can change the size, finish, power factor and so on. Besides, some of the similar products haven’t been found out till now, we could produce it through modeling as long as you provide us a clear picture and specifications.
Q. Do you have a special price and service for wholesale?
ZEHAI Lighting is keeping search a long term business cooperation with our clients. As a professional led lighting manufacturer, we can OEM&ODM for our clients, fully support and assist on service, to offer you the most competitive price with high quality product is our responsible.

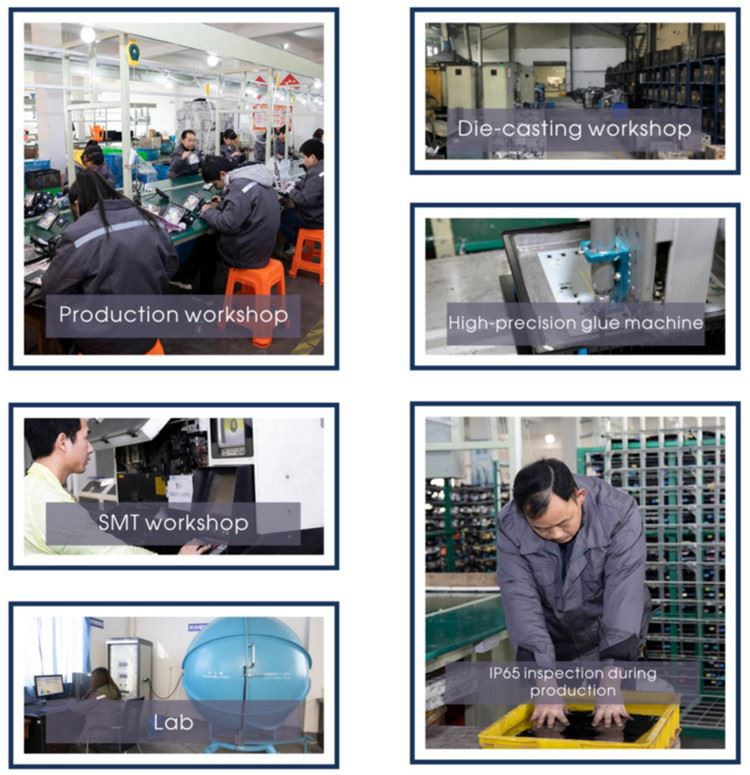

Q. What about your quality control system? What testing equipment do you have?
We have a strict quality control system. We have EMC testing room, integrating sphere, life testing system, lighting surge tester, constant temperature aging room and also dark room.
